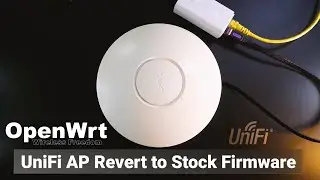

OpenWRT - UniFi AP Revert to Stock Firmware
In this video, we will revert the UniFi UAP-LR running OpenWRT back to stock firmware. The tutorial can be applied for all UniFi Access Points, such as the UniFi AP, UniFi AC and UniFi AC Lite.
The process is very easy: you just need to turn the device into TFTP mode, download the stock firmware from Ubiquity website and use a TFTP client to send the firmware to the AP. Of course, you will need to adopt the UniFi AP with your UniFi controller, but this is something you should already known if you are using UniFi devices.
If you are using a Legacy UniFi access point (End of Life), such as the UAP-LR, the LED pattern for TFTP mode is Flashing Amber-Green-Off. However, in non-legacy devices (supported devices), such as the UniFi AP AC LITE, the LED pattern will be Flashing White-Blue-Off.
Video timeframe:
00:00 - Intro & Download UniFi AP Stock Firmware
02:01 - UniFi AP LED Pattern
02:46 - Boot UniFi UAP-LR into TFTP mode
04:22 - Set Static IP Address on PC
05:34 - 1st Attempt - Send the Firmware to the AP with Pumpkin
06:40 - Firmware Sent Failed & Troubleshooting
07:08 - 2nd Attempt - Send the Firmware to the AP with Pumpkin (OK)
08:52 - Connect UniFi AP & PC to Router
09:21 - Get the UniFi AP IP Address & Establish SSH Connection
Resources:
Install OpenWRT on UniFi Access Point - • OpenWRT - Install OpenWRT on Ubiquiti...
TFTP Recovery for UniFi Bricked Access Points - https://help.ui.com/hc/en-us/articles...
LED Color Patterns for UniFi Devices - https://help.ui.com/hc/en-us/articles...
Download UniFi Firmware - https://www.ui.com/download/unifi/
Good luck and thanks for watching!
