Create a Virtual Switch and a VMkernel Port Group for vSphere vMotion migration
Create a Virtual Switch and a VMkernel Port Group for vSphere vMotion migration
1. Prepare
- DC1 : Domain Controller ; IP 10.0.0.1
- DC4 : vSphere client 6 ; IP 10.0.0.4
- vCenter1 : vCenter server 6 ; IP 10.0.0.101
- ESX1 : ESXi server 6 ; IP 10.0.0.221
2. Step by step
- DC4 :

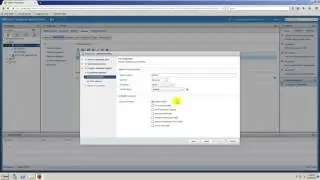

+ Mozilla Firefox - https://10.0.0.101 - Log in to vSphere Web Client
- Enter username and password - Home - Hosts and Clusters - DC
- 10.0.0.221 - Manage - Networking - Virtual Switch - Add Host Networking :
+ 1 Select connection type : VMkernel Network Adapter
+ 2 Select target device : New standard switch
+ 3 Create a Standard Switch - Add adapter - vmnic1 - OK
+ 4 Connection settings :
+ 4a Port properties
+ Network lable : vMotion
+ Enable services : Select vMotion traffic
+ 4b IPv4 settings : IPv4 address 10.0.2.221 , subnet mask 255.255.255.0
+ 5 Ready to complete - Finish
