In this tutorial, we will learn how to use multi-servo with Joystick. We will control two pcs servo motor with one Joystick. You can implement your robotic arm projects with reference to this tutorial. Of course we will use external battery / power when doing this.

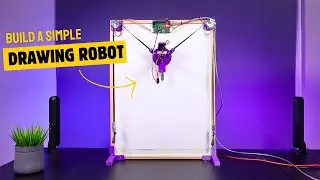

Also see this project: mXY Board - Low-Budget XY Plotter Drawing Robot Board • Make XY plotter drawing robot
Required Hardwares:
1x Arduino UNO R3:
http://bit.ly/2xt9MVk
https://amzn.to/2LZr6t4
2x Servo Motor:
http://bit.ly/2JfGtuj
https://amzn.to/3avwe1N
1x Joystick Module:
http://bit.ly/2kJkU7a
https://amzn.to/3u5097N
3 in 1 Jumper Wire:
http://bit.ly/2J6de9E
https://amzn.to/3doetmT
1x Breadboard:
http://bit.ly/2H9YSUa
https://amzn.to/3qxLxwm
Recommended Items:
Use Your Muscles in Project - https://amzn.to/3wdL45C
37 Sensor & Module Packages - https://amzn.to/3m66WeQ
Try this Robot Arm - https://amzn.to/3fq8DCl
Best Resin 3D Printer - https://amzn.to/39tY8KB
Arduino Compatible Kits - http://bit.ly/2J2AFF7
Banggood Spring Sale - https://bit.ly/3slMbOn
Source Code:
https://github.com/MertArduino/Multip...
Connections:
The external battery VCC / GND connect to the breadboard.
The Arduino GND connect to the breadboard's GND input
The Servo1 VCC and GND connect to the breadboard's VCC / GND inputs
The Servo1 Signal connect to the Arduino Digital PWM 3
The Servo2 VCC and GND connect to the breadboard's VCC / GND inputs
The Servo2 Signal connect to the Arduino Digital PWM 5
The Joystick GND connect to the Arduino GND
The Joystick VCC connect to the Arduino VCC
The Joystick 'X' (in some modules 'H') connect to the Arduino Analog 0
The Joystick 'Y' (in some modules 'V') connect to the Arduino Analog 1
The Joystick 'SW' (switch or button) not connected.
