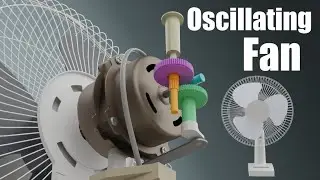

How does an Oscillating Fan work?

Published: 07 February 2020
on channel: Jared Owen

5,665,548

124k

That table top fan you have next to you is more interesting than you think! I took mine apart so I could show you how it works. The "four speed mechanism" releases any other button that was previously pressed down. Once a button is pressed a signal (voltage) is sent to the motor at the top of the fan. The oscillation motion is produced through the 4 bar mechanism. The last part of the video covers the gears that turn the 4 bar mechanism. The pin is part of the gears - when it is lifted the gears don't connect and the fan will no longer oscillate back and forth.

Purchase an oscillating fan similar to the one shown in this video: https://amzn.to/2H3fyyR

This video has been dubbed in over 20 languages, you can change the audio track language in the Settings menu (click the gear icon in the lower right hand corner of the video).
Try dubbing your videos with AI: https://dittodub.com/a/jaredowen

⌚Timestamps:
0:00-Intro
0:20 - Fan Intro
1:20 - Button Mechanism
2:26 - Signal to the top
3:03 - Four Bar Mechanism
4:03 - Fan Oscillation
4:35 - Gear Box
5:57 - Ball Bearings Again
6:32 - Speed of the Fan
