nTop Live: Streamline CFD Simulations with nTop Platform and ANSYS
Designing complex fluidic devices or heat exchangers involves multiple iterations and repeated simulation steps. Streamlining the process saves you time that can be allocated to designing even higher-performing products.

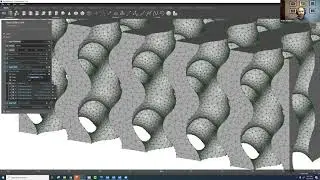

In this nTop Live, Maiki Vlahinos, Senior Application Engineer at nTopology, demonstrates how to setup a workflow in nTop Platform to prepare your designs for CFD simulations in Ansys. He shows you step-by-step how to define boundary conditions in nTop Platform and pass them to Ansys as node sets.
Watch and learn how to:
Define and link boundary condition surfaces in nTop Platform
Import the mesh directly into Ansys CFX or Fluent for simulation
Streamline your CFD simulation process
Download the files Maiki used in this presentation here: https://ntopolo.gy/5g6
Don’t have a license of nTop Platform yet? Get a demo: https://ntopolo.gy/demo
